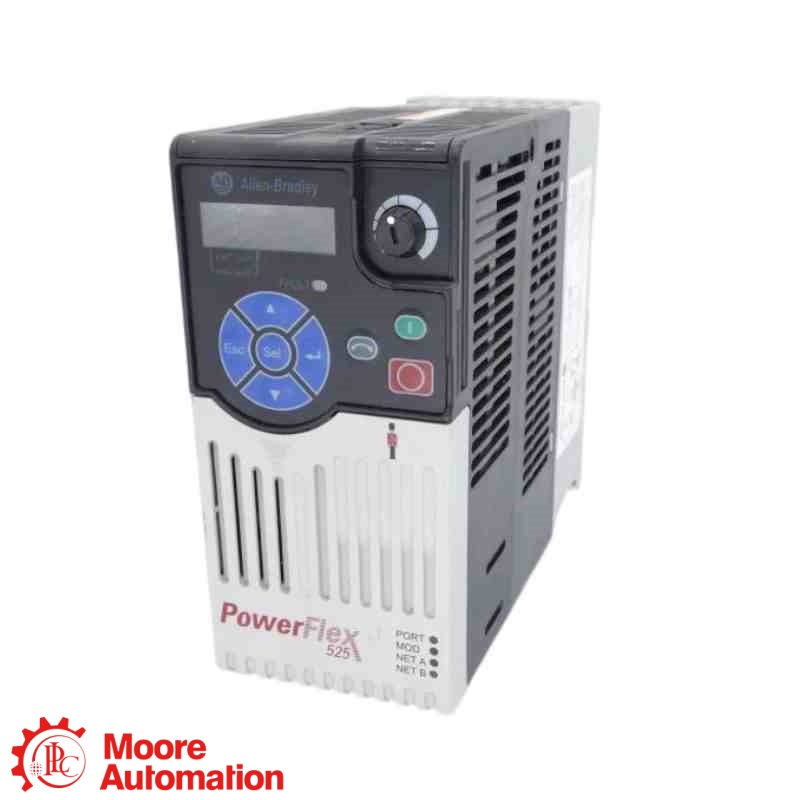

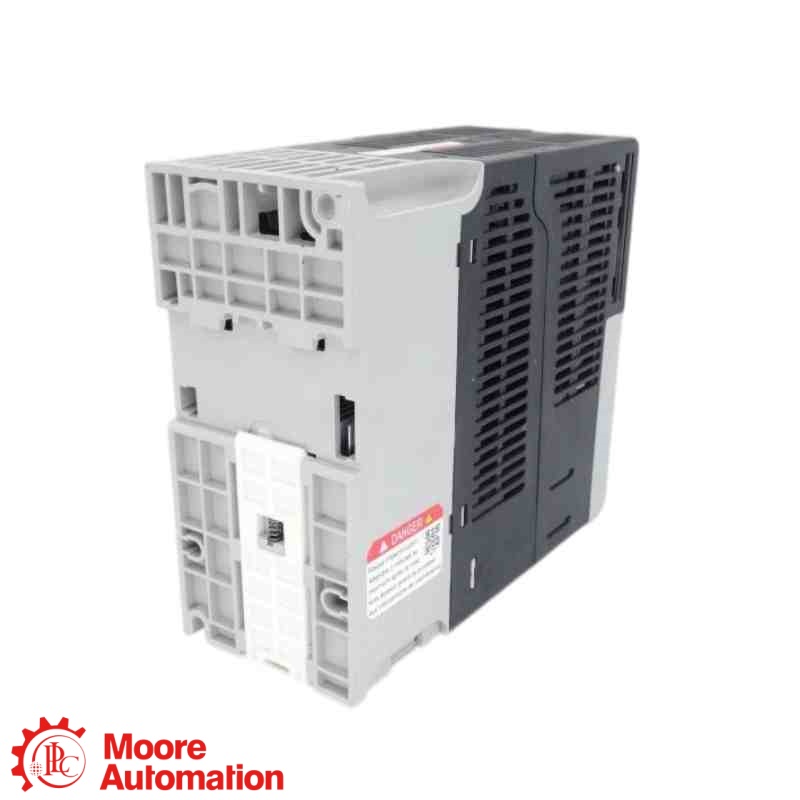

The 25B-A4P8N104 is a PowerFlex 525 AC drive with embedded EtherNet/IP and safety, 200...240V AC, 1 Phase, 4.8 A, 1 Hp / 0.75 kW, Frame A, IP20 NEMA / Open Type and no filter.
Merk :
PLCOnderdeel nummer :
25B-A4P8N104Dimensie :

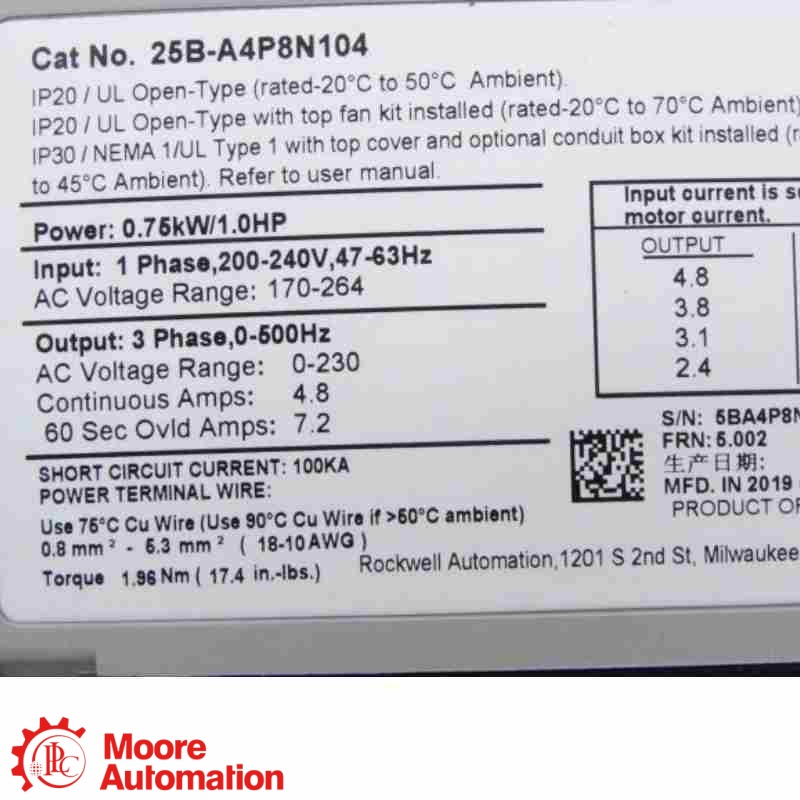

72 mm W x 152 mm H x 172 mm D; 1.1 kg; 200...240V AC 1 Phase; 4.8 A; IP20 NEMA / Open TypeHS-code :
PowerFlex 525 0.75 kW AC DriveBeschrijving :
The 25B-A4P8N104 is a PowerFlex 525 AC drive with embedded EtherNet/IP and safety, 200...240V AC, 1 Phase, 4.8 A, 1 Hp / 0.75 kW, Frame A, IP20 NEMA / Open Type and no filter.Click “+” to expand more specifications.
Source: The official 25B-A4P8N104 product record and Rockwell Automation publication 520-TD001 support the specifications shown here.
25B-A4P8N104 is a PowerFlex 525 adjustable-frequency AC drive for variable-speed motor control, with embedded EtherNet/IP and safety.
25B-A4P8N104 is rated for 200...240V AC, 1 Phase input.
25B-A4P8N104 provides 4.8 A rated output current and 1 Hp / 0.75 kW normal- and heavy-duty output ratings.
25B-A4P8N104 uses Frame A construction with an IP20 NEMA / Open Type enclosure and no EMC filter.
25B-A4P8N104 includes embedded EtherNet/IP communication and an integral keypad with potentiometer and LED display.
25B-A4P8N104 includes embedded Safe Torque Off functionality and a brake IGBT according to the official product record.
25B-A4P8N104 should be verified against the complete catalog number, input supply, motor rating, enclosure, network configuration and application requirements.
Official manufacturer-reference information for the 25B-A4P8N104 PowerFlex 525 adjustable-frequency AC drive.
Rockwell Automation technical data 520-TD001 lists 25B-A4P8N104 with its voltage class, phase, output current, output power and Frame A construction.
OPEN OFFICIAL TECHNICAL DATA PDFSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements on this product page are based on Rockwell Automation publication 520-TD001 and the exact official product record for 25B-A4P8N104.
Rockwell Automation identifies 25B-A4P8N104 as the exact catalog number for a PowerFlex 525 AC drive with embedded EtherNet/IP and safety. The official product record specifies 200...240V AC, 1 Phase, 4.8 A protection and an included 1 Hp / 0.75 kW output.
The official unique product identifier and complete catalog number.
Embedded EtherNet/IP connectivity supports networked drive integration.
Normal- and heavy-duty ratings are 1 Hp / 0.75 kW.
The official product record specifies Frame A, IP20 NEMA / Open Type and no filter.
Provides adjustable-frequency control for industrial AC motors in machine applications.
Supports controlled acceleration, deceleration and speed regulation for conveyor and material-handling systems.
Embedded EtherNet/IP and Safe Torque Off support integrated machine-control architectures.
Variable-speed control can regulate flow and pressure in pump and fan applications.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
