The 2707-MVH232 is a DTAM Plus LCD operator interface with Application is transferred with compatible MicroView programming tools, a printer port, a real-time clock and the P1 power configuration.
Merk :
PLCOnderdeel nummer :
2707-MVH232Gewicht :
Verify from the exact assembly labelDimensie :
5.1 × 3.55 × 0.975 in bodyLand van herkomst :
USAHS-code :
MicroView Hand-Held Operator InterfaceBeschrijving :

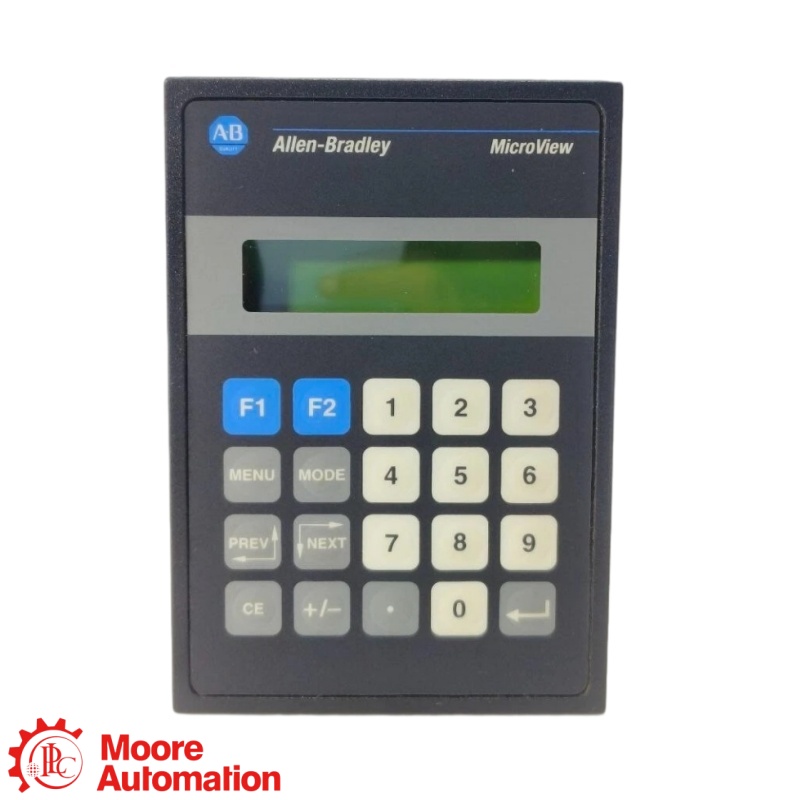

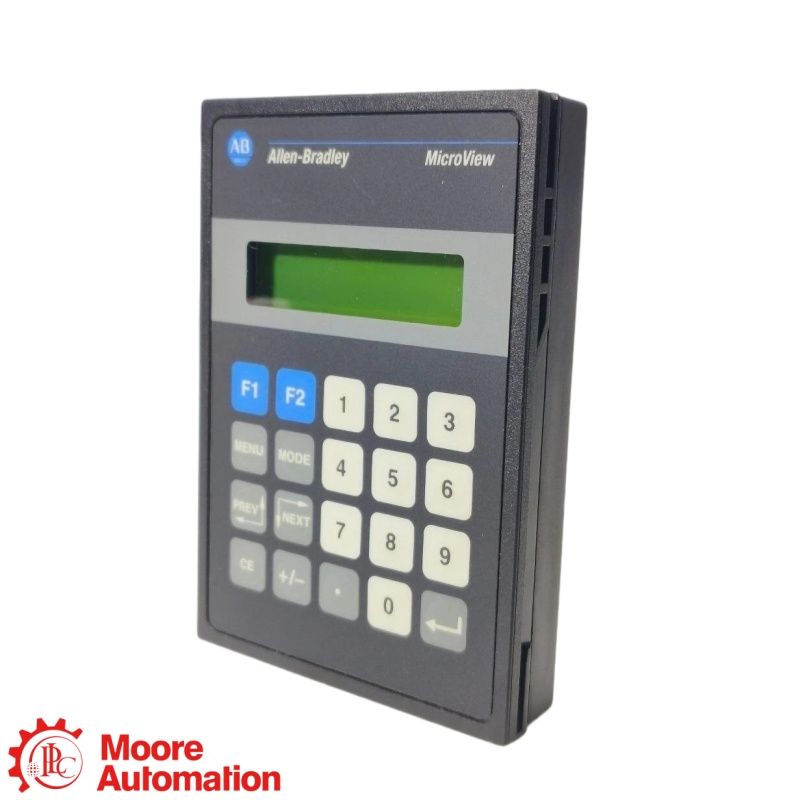

2707-MVH232 is a hand-held MicroView operator interface with a two-line, 16-character LCD, a sealed keypad and an RS-232 connection for a compatible controller.Click “+” to expand more specifications.
Source: Official publication 2707-UM005 covers 2707-MVH232. Verify the nameplate, saved application, wiring and host configuration before replacement.
The 2707-MVH232 is a DTAM Plus LCD operator interface with Application is transferred with compatible MicroView programming tools, a printer port, a real-time clock and the P1 power configuration.
2707-MVH232 provides Application is transferred with compatible MicroView programming tools together with a printer port and real-time clock, while 2707-L8P1 is the 8K LCD variant.
2707-MVH232 requires 11–25 V DC, 1.5 W. The installed supply voltage, grounding and connector wiring must be verified before energizing the replacement unit.
2707-MVH232 uses RS-232 point-to-point. The host protocol, port type, addressing, cable and maximum link distance must match the saved controller application.
2707-MVH232 replacement requires confirmation of the full nameplate, hardware series, panel cutout or mounting, power input, serial cable and a recoverable copy of the operator application.
2707-MVH232 inquiries should include clear nameplate photographs, quantity, hardware series, power code, installed controller, communication cable, panel dimensions and the application backup status.
Official manufacturer-reference information for the 2707-MVH232 MicroView Hand-Held Operator Interface.
Official publication 2707-UM005 covers configuration, installation, communication and operating requirements for this catalog variant.
OFFICIAL MANUALSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements on this page are limited to official publication 2707-UM005. No third-party product sources were used.
PLC is the product-family reference. 2707-MVH232 must be matched to the complete nameplate, power code, display type, serial interface, panel cutout and saved application.
Record the installed controller model, host protocol, device address, panel position and adjacent equipment.
Photograph the host serial port, printer port, cable, connector and wiring before disconnecting the unit.
Verify the nameplate supply and grounding. The hand-held unit uses an 11–25 V DC input.
Do not select a substitute until the hardware series, cutout, supply, cable and recoverable application backup are confirmed. Confirm the hand-held housing, RS-232 cable and connector arrangement.
Match 2707-MVH232 and its complete suffix to the full nameplate and installed-system documentation.
Create a recoverable copy of the operator application and record the communication parameters before removal.
Record the host protocol, address, serial cable, power input and panel cutout used by the installed application.
Confirm display, memory, ports, power code, mounting and application compatibility before commissioning.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
