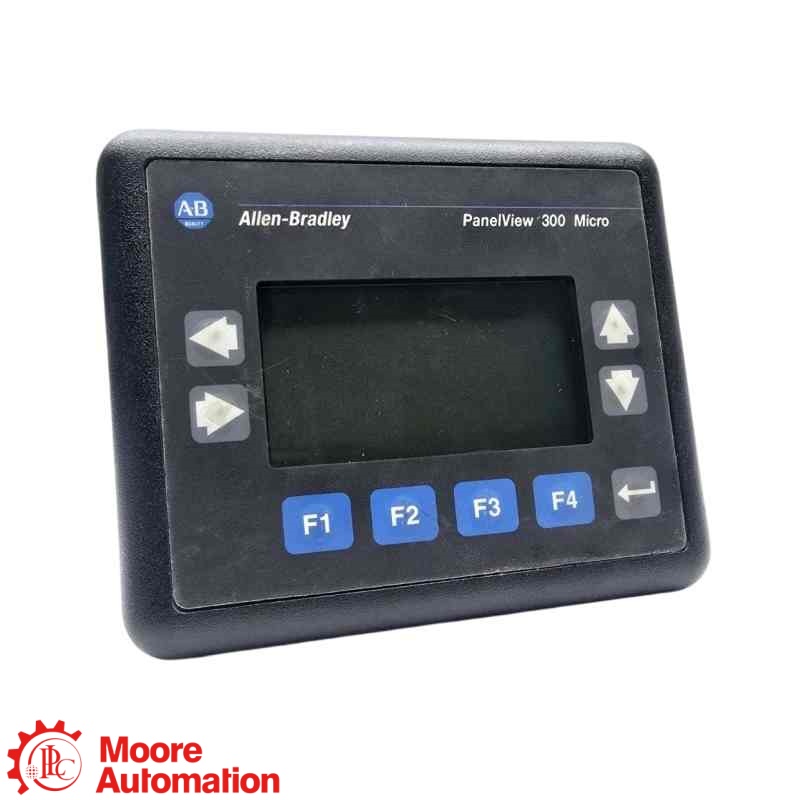

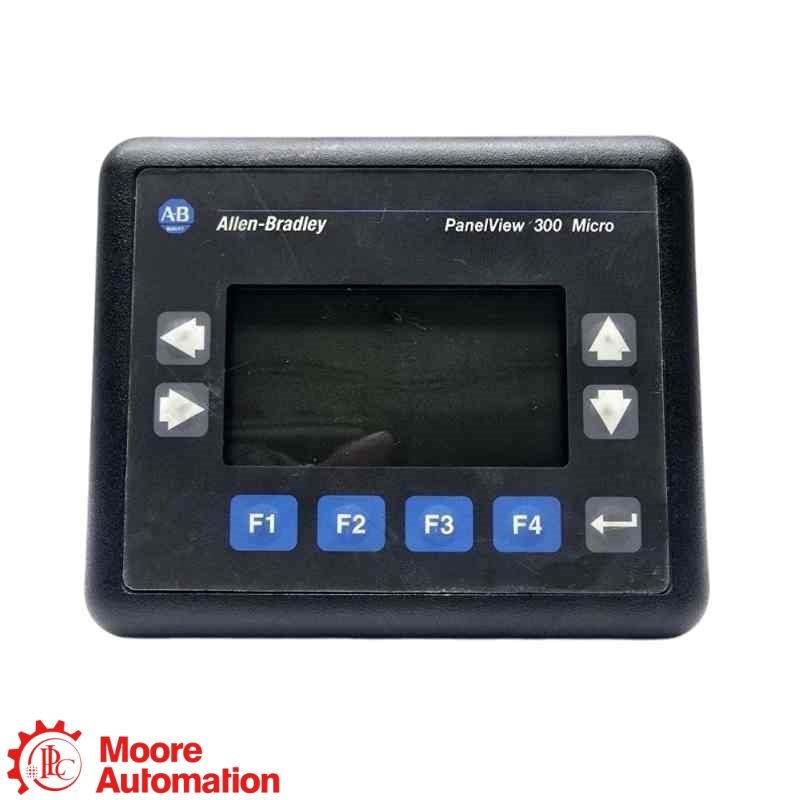

The 2711-M3A19L1 is a PLC PanelView 300 Micro operator terminal with keypad input, a 128 × 64 monochrome display and RS-232 (DH-485) communication.
Merk :
PLCOnderdeel nummer :
2711-M3A19L1Gewicht :
Verify from the exact terminal labelDimensie :
133 × 111 × 48 mm; verify panel cutout and wiring from publication 2711-TD007Land van herkomst :
Verify from the exact terminal labelHS-code :
PanelView 300 Micro Operator TerminalBeschrijving :
The 2711-M3A19L1 is a PLC PanelView 300 Micro operator terminal with keypad input, a 128 × 64 monochrome display and RS-232 (DH-485) communication.Click “+” to expand more specifications.
Source: Official publication 2711-TD007 covers 2711-M3A19L1 technical specifications. Verify the terminal catalog number, supply, communication wiring and panel cutout before replacement.
2711-M3A19L1 is a PanelView 300 Micro operator terminal that presents machine information and accepts keypad commands through a PLC application.
2711-M3A19L1 uses a 128 × 64 monochrome transflective LCD with LED backlight and a 73 × 42 mm display area.
2711-M3A19L1 provides one RS-232 communication port supporting DH-485 through an 8-pin mini-DIN connector and has no printer port.
2711-M3A19L1 operates from 11…30 V DC with 24 V DC nominal input; verify polarity, grounding and supply capacity before installation.
2711-M3A19L1 provides 170 KB application runtime memory and 240 KB nonvolatile memory for application objects, text and bitmaps.
2711-M3A19L1 requires confirmation of the application backup, 24 V DC supply, RS-232 (DH-485) wiring, panel cutout and controller settings before replacement.
2711-M3A19L1 inquiries should include the exact catalog number, series or revision, quantity, controller model, application details and clear nameplate photographs.
Official manufacturer-reference information for the 2711-M3A19L1 PanelView 300 Micro operator terminal.
Official publication 2711-TD007 provides technical specifications for the 2711-M3A19L1 PanelView 300 Micro operator terminal.
OFFICIAL MANUALSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements on this page are limited to official publication 2711-TD007 and the exact-model operator-terminal documentation. No third-party product sources were used.
PLC is the product-family reference. 2711-M3A19L1 must be matched to the complete terminal label, installed application, 24 V DC supply, RS-232 (DH-485) wiring and panel cutout.
Record the installed controller, 24 V DC supply, 8-pin mini-DIN communication wiring and panel cutout.

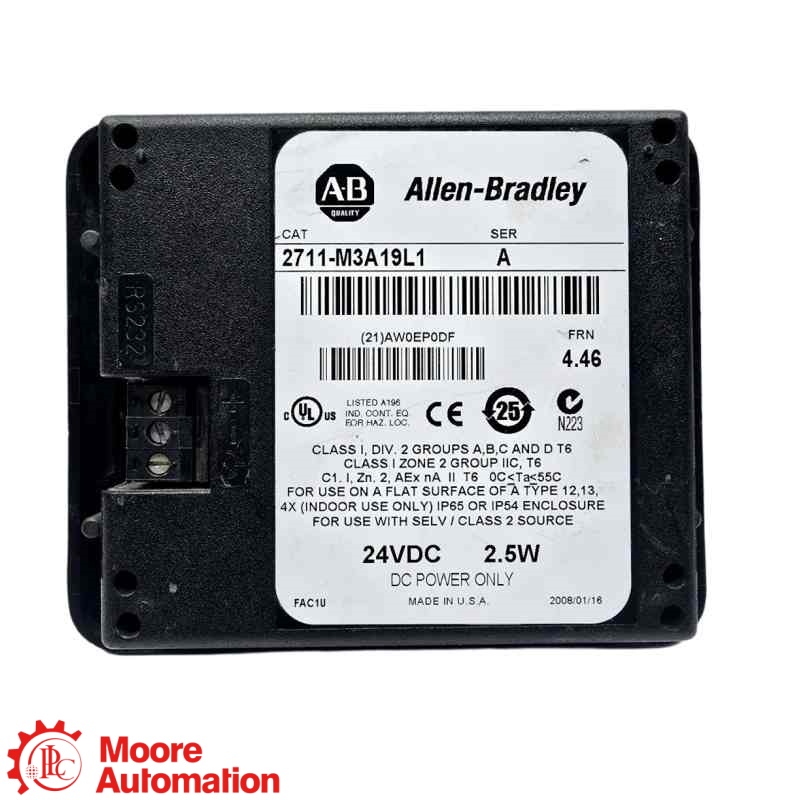

Photograph the terminal label, power connector, communication wiring and panel mounting before removal.
Verify the 11…30 V DC input, communication wiring and panel grounding before commissioning.
Do not select a substitute until the display, keypad, communication protocol, supply and panel dimensions are confirmed.
Match 2711-M3A19L1 to the full terminal label and installed-system documentation.
Confirm the installed application, communication settings and machine state before terminal replacement.
Record the controller, 24 V DC supply, RS-232 (DH-485) wiring and panel cutout.
Confirm the exact terminal catalog number, application file, supply, communication wiring and panel mounting before commissioning.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
