The 2715P-T7CD is a PLC PanelView 5510 operator terminal with resistive touch input, a 6.5-inch color TFT display, 640 × 480 resolution and dual Ethernet ports.
Merk :
PLCOnderdeel nummer :
2715P-T7CDGewicht :
Verify from the exact terminal labelDimensie :
212 × 178 × 69.5 mm overall; verify 184 × 142 mm panel cutout and Ethernet cabling from publication 2715P-TD001Land van herkomst :
Verify from the exact terminal labelHS-code :
PanelView 5510 7-Inch Touch TerminalBeschrijving :
The 2715P-T7CD is a PLC PanelView 5510 operator terminal with resistive touch input, a 6.5-inch color TFT display, 640 × 480 resolution and dual 10/100Base-T Ethernet ports.Click “+” to expand more specifications.
Source: Official publication 2715P-TD001 covers 2715P-T7CD technical specifications. Verify the terminal catalog number, supply, Ethernet cabling and panel cutout before replacement.
2715P-T7CD is a PanelView 5510 operator terminal that provides resistive touch machine visualization and application control with dual Ethernet connectivity.

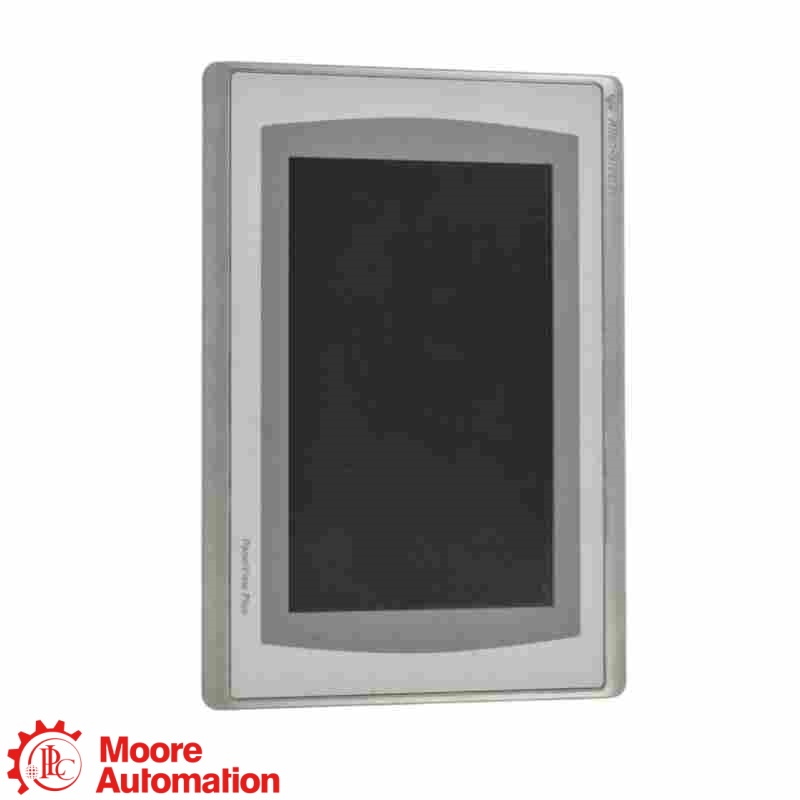

2715P-T7CD uses a 6.5-inch color TFT LCD with 640 × 480 VGA resolution, a 4:3 aspect ratio and LED backlight.

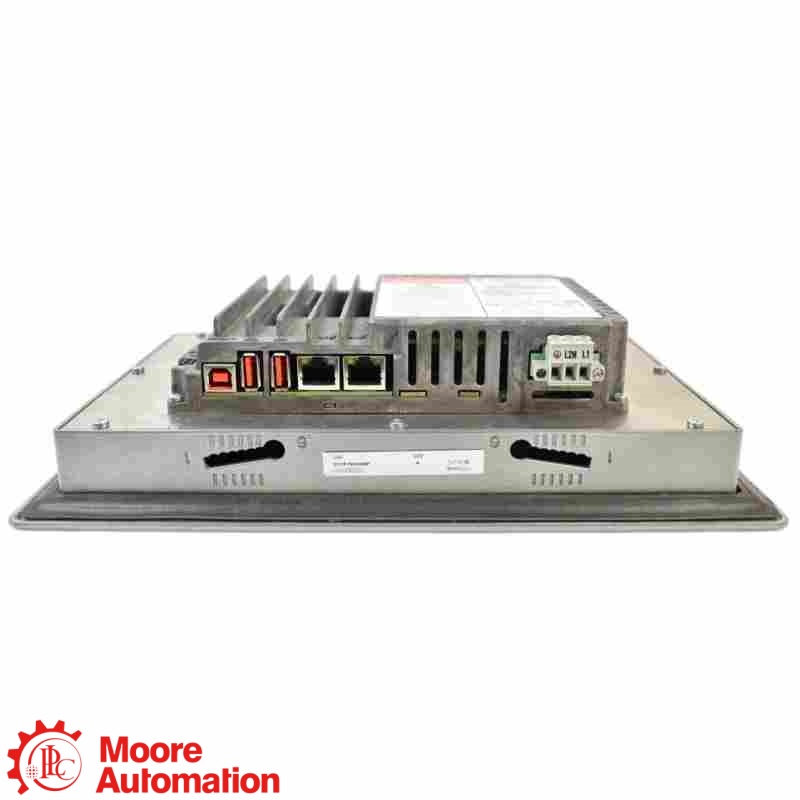

2715P-T7CD provides two 10/100Base-T Ethernet ports that support DLR, linear or star network topologies.
2715P-T7CD uses 24 V DC nominal input across an 18…30 V DC range, with 12 W typical and 22 W maximum consumption.
2715P-T7CD provides 1 GB RAM and 1 GB user-available nonvolatile storage for projects.
2715P-T7CD requires an approximately 184 × 142 mm panel cutout, 212 × 178 mm front dimensions and 69.5 mm overall depth; verify the installed enclosure.
2715P-T7CD requires the exact catalog number, terminal revision, quantity, controller, Ethernet topology, installed application and a clear nameplate photo.
Official manufacturer-reference information for the 2715P-T7CD PanelView 5510 operator terminal.
Official publication 2715P-TD001 provides technical specifications for the 2715P-T7CD PanelView 5510 operator terminal.
OFFICIAL MANUALSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements on this page are limited to official publication 2715P-TD001 and the exact-model operator-terminal documentation. No third-party product sources were used.
PLC is the product-family reference. 2715P-T7CD must be matched to the complete terminal label, installed application, 24 V DC supply, dual Ethernet cabling and panel cutout.
Record the installed controller, 24 V DC supply, dual Ethernet cabling and panel cutout.
Photograph the terminal label, power connector, communication wiring and panel mounting before removal.
Verify the 18…30 V DC input, Ethernet cabling and panel grounding before commissioning.
Do not select a substitute until the display, resistive touch input, Ethernet topology, supply and panel dimensions are confirmed.
Match 2715P-T7CD to the full terminal label and installed-system documentation.
Confirm the installed application, Ethernet settings and machine state before terminal replacement.
Record the controller, 24 V DC supply, dual Ethernet cabling and panel cutout.
Confirm the exact terminal catalog number, application file, supply, Ethernet cabling and panel mounting before commissioning.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
