Merk :
ABBOnderdeel nummer :
PM861K01 3BSE018105R1Gewicht :
1.14 kgDimensie :
20.3 cm*15.7 cm*13.5 cmLand van herkomst :
SwedenHS-code :
8537101190Beschrijving :
Processor Unit Kit

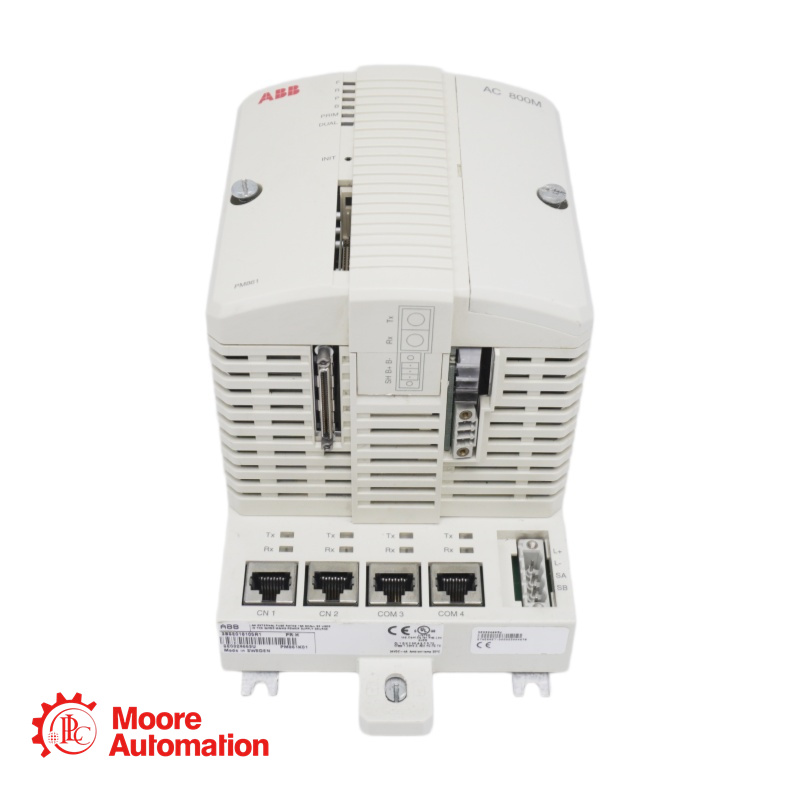

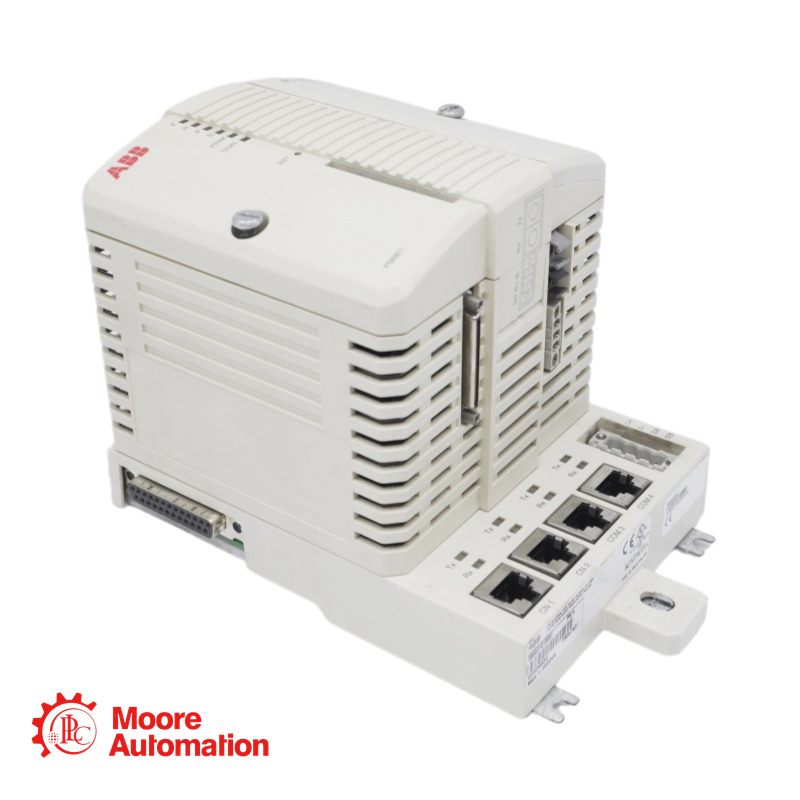

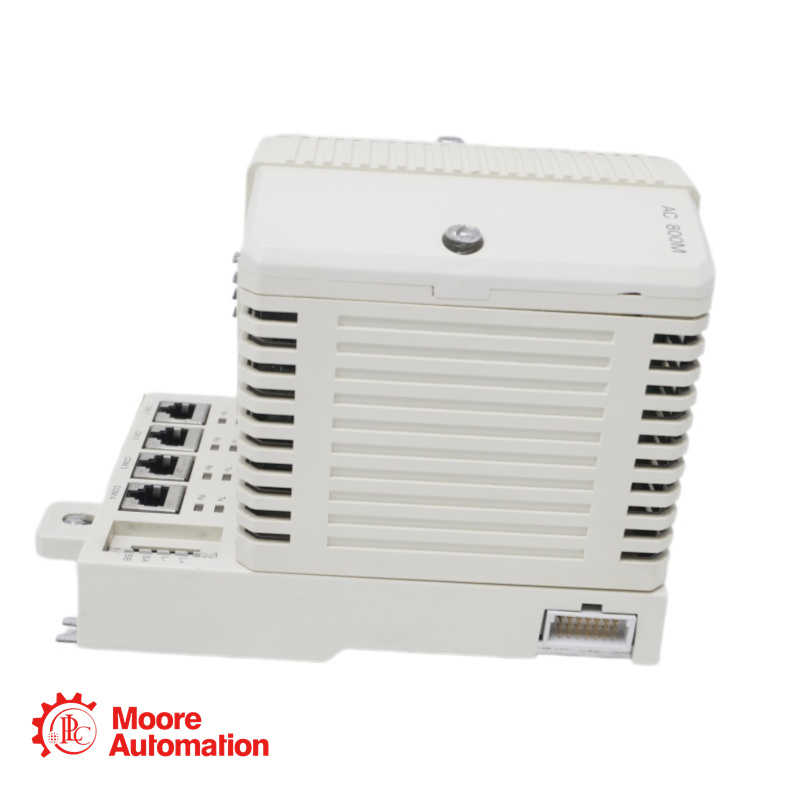

ABB PM861K01 3BSE018105R1 Processor Unit Kit
Sales Manager: Frida
Email: sales5@mooreplc.com
|
PM861K01 3BSE018105R1 Description |
PM861K01 3BSE018105R1 – AC 800M Controller Processor Unit
The PM861K01 is a processor unit within the AC 800M series, a hardware platform from ABB designed for distributed control system (DCS) applications. The "K01" designation typically indicates a package that includes the PM861 processor unit and the TP830 baseplate.
This unit serves as the central computing core of an AC 800M controller, capable of running applications for process control, manufacturing automation, and critical infrastructure. The PM861 is designed for mid-to-high-range applications and is particularly suited for systems requiring high availability through CPU redundancy.
|
PM861K01 3BSE018105R1 Parameter |
FAQ
A:PM861 is the processor module itself. PM861K01 is a complete kit that includes the PM861 processor unit and the TP830 baseplate (which holds connectors, bus interfaces, and the DIN-rail locking mechanism). Most users order the K01 version.
Q:Can the PM861 be used in a redundant controller configuration?
A:Yes. The PM861 supports CPU redundancy. Two PM861 units can be configured as primary and backup using the RCU Link Cable (TK851). If the primary fails, the backup takes over in less than 10 ms without process disturbance.
Q:What is the internal battery backup time?
A:With a fresh internal battery (3.6 V, 950 mAh), the memory backup time is a minimum of 36 hours. For extended outages, ABB recommends the external battery unit SB821 (provides weeks of backup) or SB822 (rechargeable).
|
