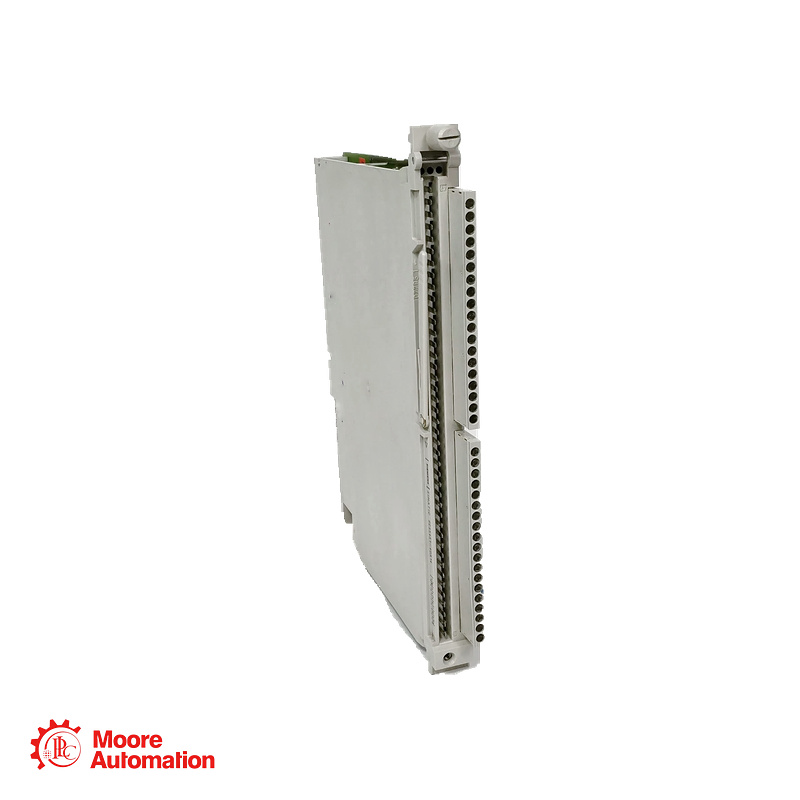

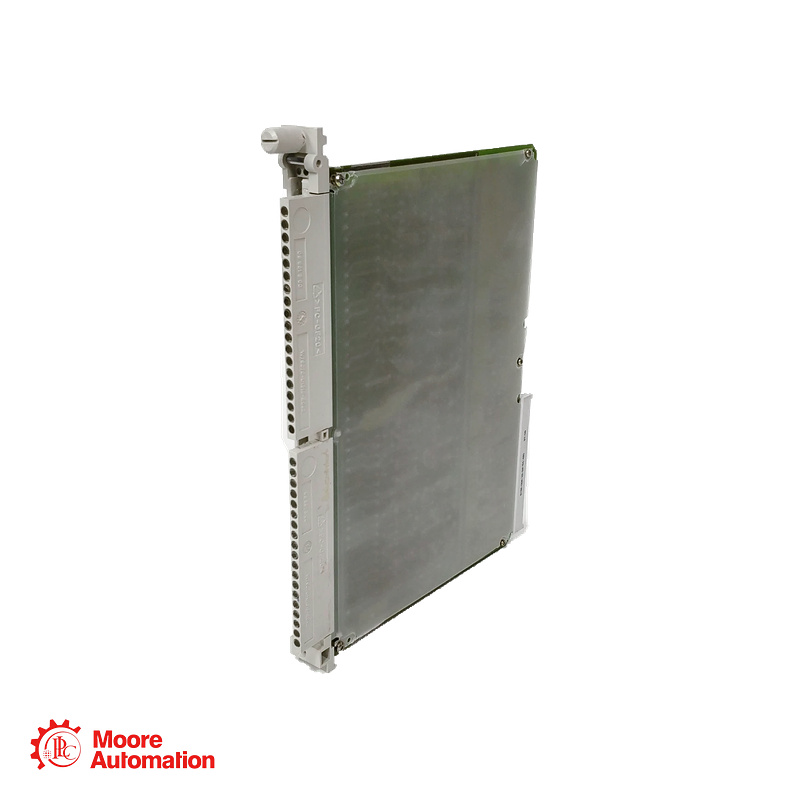

The Siemens 6ES5456-4UA12 is a 16-channel AC digital output module for SIMATIC S5-135U/155U control systems
Merk :
SiemensOnderdeel nummer :
6ES5456-4UA12Gewicht :
0.7 kgDimensie :
4 x 25 x 20 cmLand van herkomst :
GermanyHS-code :
8537101190Beschrijving :
16-Channel 115/230 V AC Output Module
Contact Below to Get Best Price
|
Sales Contact |
Mobile / WhatsApp |
|
|
Frida |
Product Overview
The Siemens 6ES5456-4UA12 is a 16-channel AC digital output module for SIMATIC S5-135U/155U control systems. It switches 115–230 V AC field circuits through two electrically isolated groups of eight outputs. For resistive or inductive loads, Siemens specifies an output-current range of 40 mA to 2 A with ventilation, or 40 mA to 1 A without ventilation. The module uses a fuse for each set of four outputs.
Technical Specifications
|
Parameter |
Value |
|
Manufacturer |
Siemens |
|
Model |
6ES5456-4UA12 |
|
Product Family |
SIMATIC S5 |
|
Module Type |
AC digital output module |
|
Number of Outputs |
16 |
|
Rated Supply Voltage |
115–230 V AC |
|
Supply Frequency |
47–63 Hz |
|
Permissible Supply Range |
88–264 V AC |
|
Galvanic Isolation |
Yes; 2 groups of 8 outputs |
|
Output Current, Ventilated |
40 mA–2 A per output; max. 6 A per 4-output section |
|
Output Current, Not Ventilated |
40 mA–1 A per output; max. 4 A per 4-output section |
|
Output Fusing |
6.3 A fast-acting fuse; 1 per 4 outputs |
Features
• 16 AC digital outputs
• 115–230 V AC rated supply, 47–63 Hz
• Two isolated groups of eight outputs
• Up to 2 A per output under ventilated conditions
• One fast-acting fuse per four outputs
Model Benefits
• Sixteen AC control points: Handles multiple discrete load signals in one module.
• Grouped electrical isolation: Separates the two eight-output sections.
• Specified load capacity: Provides clear current limits for ventilated and non-ventilated operation.
• Four-output fuse sections: Groups output protection in defined sections.
Industries Served
Industry
Typical Application
• Manufacturing
Switches suitable AC-operated machine auxiliaries and production-line control circuits.
• Power Generation
Provides discrete AC outputs for supporting equipment in S5-based plant systems.
• Water Treatment
Handles suitable AC control signals for treatment-process auxiliaries.
• Chemical Processing
Controls multiple AC field circuits within automated process equipment.
Frequently Asked Questions
1. Does 6ES5456-4UA12 provide AC or DC outputs?
It is an AC digital output module rated for 115–230 V AC supply circuits.
2. How are its outputs grouped?
The 16 outputs form two electrically isolated groups of eight.
3. Is the output rating always 2 A?
No. Siemens specifies 40 mA to 2 A per output with ventilation, and 40 mA to 1 A without ventilation. The total current limit for each four-output fuse section also applies.
4. How many outputs share one fuse?
Four outputs share one 6.3 A fast-acting fuse.
