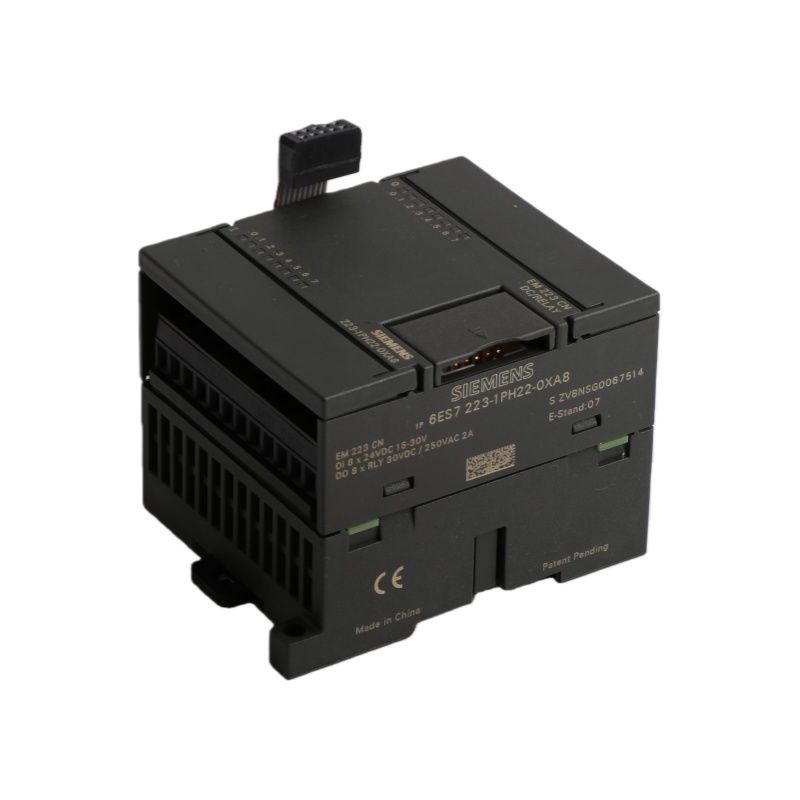

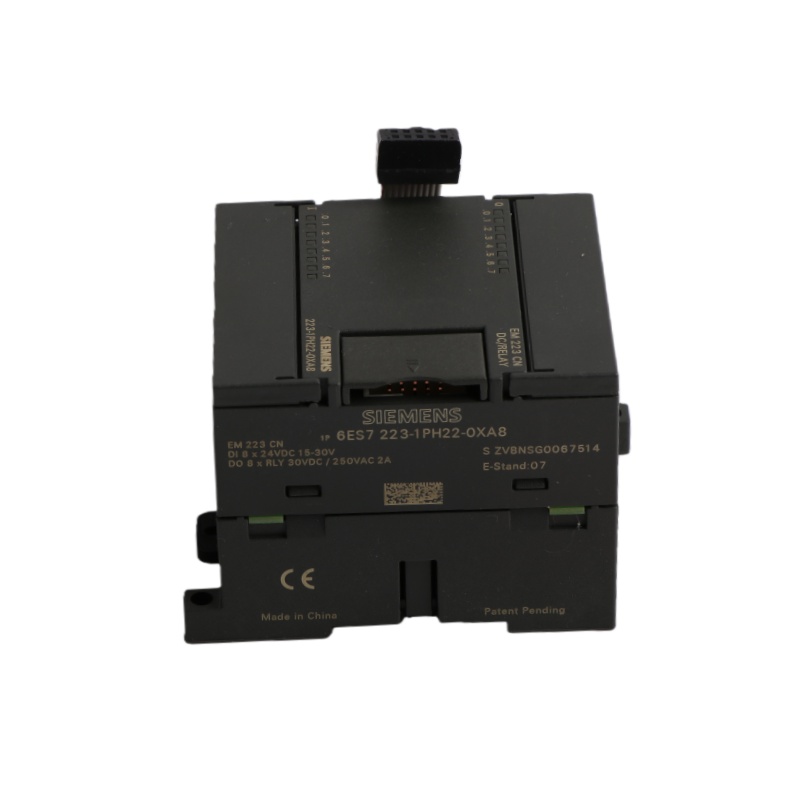

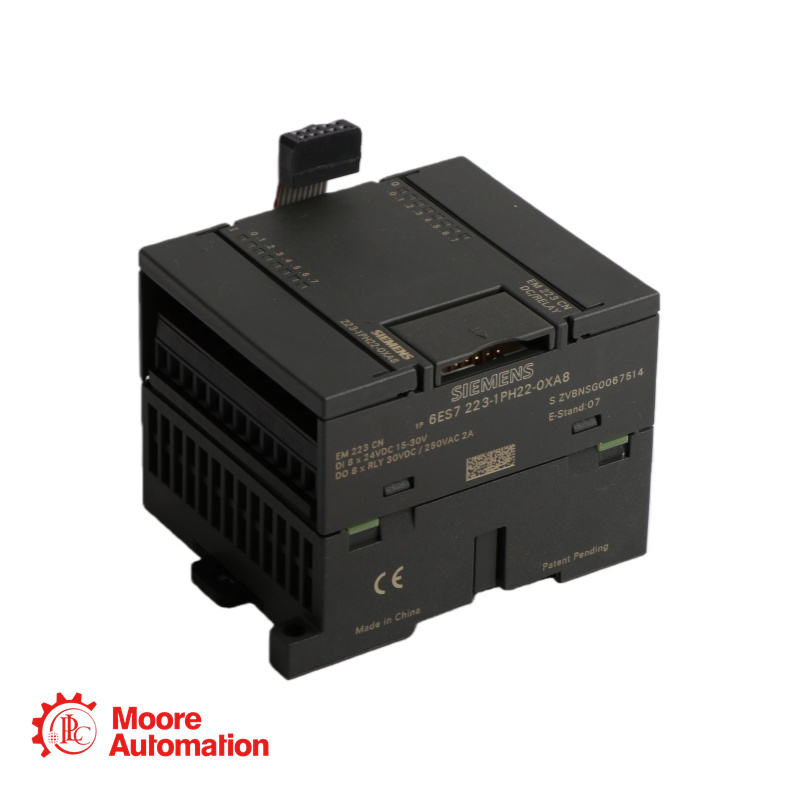

Siemens 6ES7223-1PH22-0XA0 is a SIMATIC S7-200 EM 223 digital I/O module for S7-22X CPUs only. It provides 8 digital inputs rated at 24 V DC with sink/source wiring and 8 relay outputs rated at 2 A per channel. Siemens classifies this article as a PM410 cancelled spare-part product, effective 1 October 2017. Condition, quantity, price, availability and delivery are confirmed by quotation.
Merk :
SiemensOnderdeel nummer :
6ES7223-1PH22-0XA0Gewicht :
0.18 kgDimensie :
7x6.1x9.5cmLand van herkomst :
GermanyHS-code :
8537101190Beschrijving :
Digital I/O Module|
SIEMENS · SIMATIC S7-200 · PM410 SPARE-PART PRODUCT EM 223 Digital I/O Module6ES7223-1PH22-0XA0 For SIMATIC S7-22X CPUs only, with 8 digital inputs at 24 V DC (sink/source) and 8 relay outputs. Match the complete article number, including the 0XA0 suffix, before requesting a quotation. |
| Digital inputs |
8 DI 24 V DC, sink/source |
| Digital outputs |
8 DO Relay outputs |
| Rated current |
2 A per channel Load-specific switching limits apply |
| CPU platform | SIMATIC S7-22X CPUs only |
* Siemens lists 0.75 A maximum per output for inductive and resistive loads.
|
Manufacturer lifecycle notice: Siemens lists this article as PM410 product cancellation, effective 1 October 2017, and identifies it as a spare-part product. |
| Exact article |
Siemens SIMATIC S7-200 EM 223 6ES7223-1PH22-0XA0 |
| Required platform | For S7-22X CPUs only. Do not confuse it with an S7-1200 SM 1223 or an S7-200 CN 0XA8 variant. |
| Replacement caution | 6ES7223-1PH32-0XB0 is not presented here as a direct replacement. Any substitution requires an engineering review. |
| Identification and compatibility | |
| Manufacturer / product line | Siemens / SIMATIC S7-200 |
| Module / article number | Digital I/O EM 223 / 6ES7223-1PH22-0XA0 |
| CPU compatibility | S7-22X CPUs only |
| Inputs and outputs | |
| Digital inputs | 8 DC inputs; sink/source; rated 24 V DC |
| Input signal levels | Signal “0”: 0–5 V; signal “1”: 15–30 V DC; 4 mA typical at signal “1” |
| Input delay | 4.5 ms maximum, 0 → 1 |
| Digital outputs | 8 relay outputs; no short-circuit protection |
| Rated output current | 2,000 mA per channel; load-specific limits apply |
| Contact switching capacity | Inductive: 0.75 A max/output; resistive: 0.75 A max/output; lamp load: 30 W DC / 200 W AC |
| Electrical and mechanical data | |
| Isolation | DI: optocoupler, groups of 4; DO: relay, groups of 4; tested at 500 V AC |
| Typical power loss | 3 W |
| Cable length | 500 m maximum shielded; 150 m maximum unshielded |
| Dimensions (W × H × D) | 71.2 × 80 × 62 mm |
| Connection | Plug-in I/O terminals |
|
No. Siemens lists it as a PM410 cancelled spare-part product, effective 1 October 2017.
Siemens specifies use with SIMATIC S7-22X CPUs only.
This page does not claim a direct replacement. The 1PH32 article belongs to the S7-1200 family and requires an engineering compatibility review.
Availability, offered condition, price and lead time are confirmed individually in the quotation.
|
Official data scope Technical specifications and lifecycle information above are based on Siemens official product data for article 6ES7223-1PH22-0XA0. Product names and trademarks are used for identification. |
Siemens official documentsUse the exact article number 6ES7223-1PH22-0XA0 when checking manufacturer documentation. |
Before requesting a quotationPlease provide the complete article number, installed S7-22X CPU model, required quantity and destination. Moore Automation will confirm the offered condition, compatibility, availability, price and lead time by quotation. No availability, condition, price or delivery commitment is made before quotation confirmation. Product names and trademarks are used for identification; technical specifications are based on Siemens official product data. |
|
