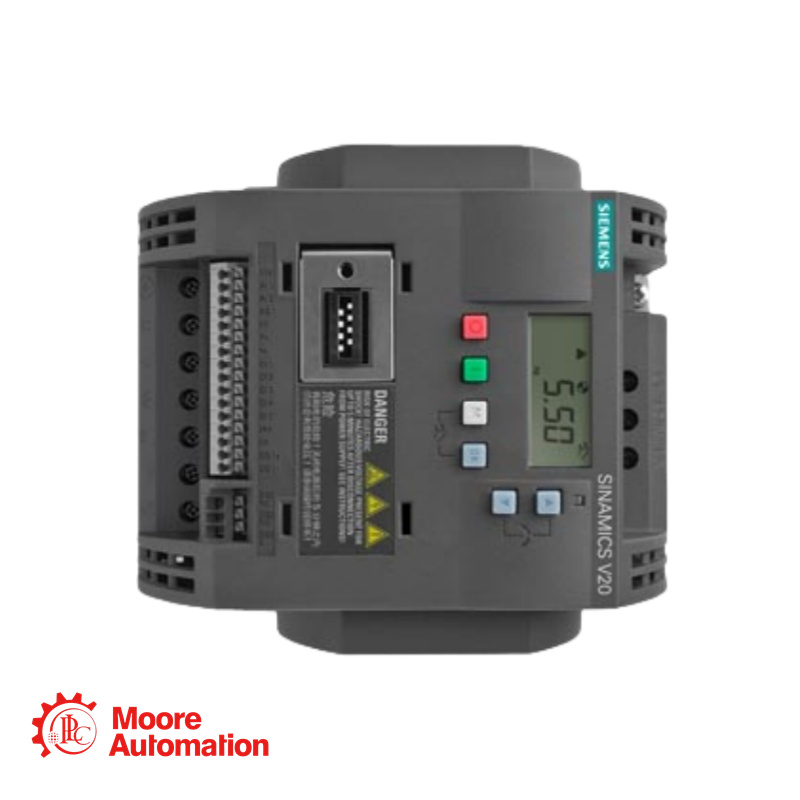

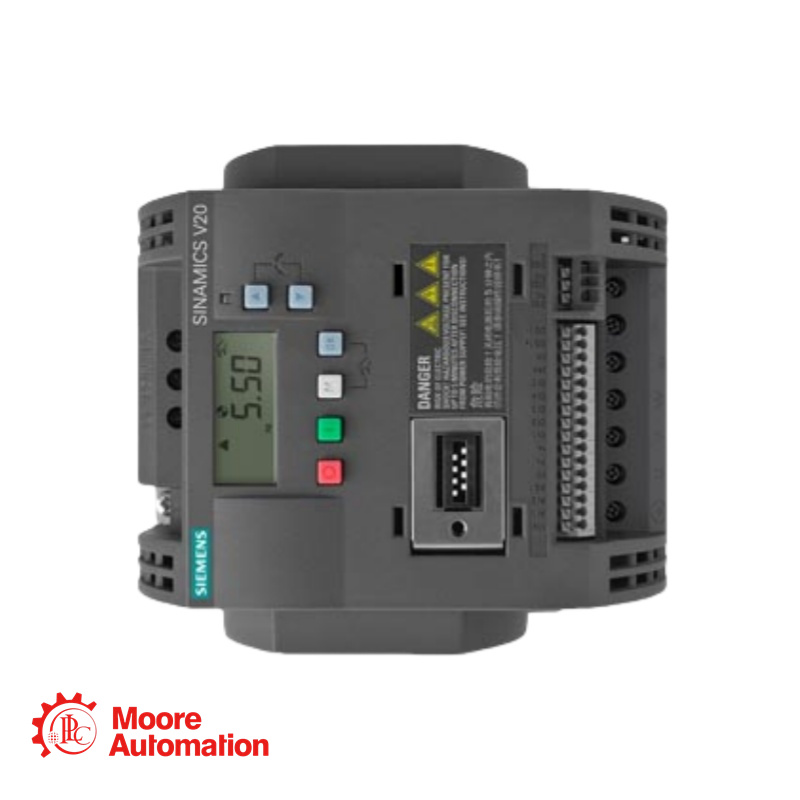

Siemens 6SL3210-5BE22-2CV1 AC Inverter Drive

Sales Manager:

Phone/WhatsApp:

Email:

Frida

+86 15359408275

sales5@mooreplc.com

Product Introduction

Product Model:6SL3210-5BE22-2CV1

Type: AC Inverter Drive

Manufacturer: Siemens

Shipment: DHL, UPS, Fedex, and TNT

Description:
The SINAMICS V20 6SL3210-5BE22-2CV1 is a compact, general-purpose frequency inverter designed for three-phase motors up to 2.2 kW (3 HP), featuring integrated communication, braking, and Class A filtering.  It supports robust overload performance with both low (110%) and high (150%) overload modes, and offers flexible I/O configuration including analog and digital signals for easy integration into automation systems.  Suitable for wall or side-by-side mounting in industrial environments, this drive is certified for global markets (CE, cULus, KC) and operates reliably across a wide temperature and voltage range.

Specification:

Input: 3-phase AC, line voltage 380–480 V (-15% to +10%), line frequency 47–63 Hz
Output: 3-phase AC, rated voltage 400 V (IEC) / 480 V (NEC)
Rated Power (Low Overload LO): 2.20 kW / 3.00 hp
Rated Power (High Overload HO): 2.20 kW / 3.00 hp
Rated Current (LO/HO): 5.60 A (400 V IEC), 4.80 A (480 V NEC)
Rated Current (IN): 5.60 A
Pulse Frequency: 4.00 kHz
Output Frequency Range: 0–550 Hz
Overload Capability (LO): 110% rated output current for 60 s, cycle time 300 s
Overload Capability (HO): 150% rated output current for 60 s, cycle time 300 s
Power Factor (λ): 0.72
Displacement Factor (cos φ): 0.95
Efficiency (η): 0.98
Digital Inputs: 4 standard
Digital Outputs: 1 relay changeover contact, 1 transistor output
Analog Inputs: 2 (can also be used as digital inputs)
Analog Outputs: 1
Installation Altitude: Up to 1,000 m (3,280.84 ft)
Operating Temperature: -10 to 60 °C (14 to 140 °F) (derating above 40 °C)
Storage Temperature: -40 to 70 °C (-40 to 158 °F)
Max.  Operating Relative Humidity: 95%
Max.  Motor Cable Length (Shielded): 10 m (32.81 ft)
Max.  Motor Cable Length (Unshielded): 50 m (164.04 ft)
