 /Siemens 6SL3210-5HE15-0UF0 SINAMICS S210 5.0 kW Servo Drive

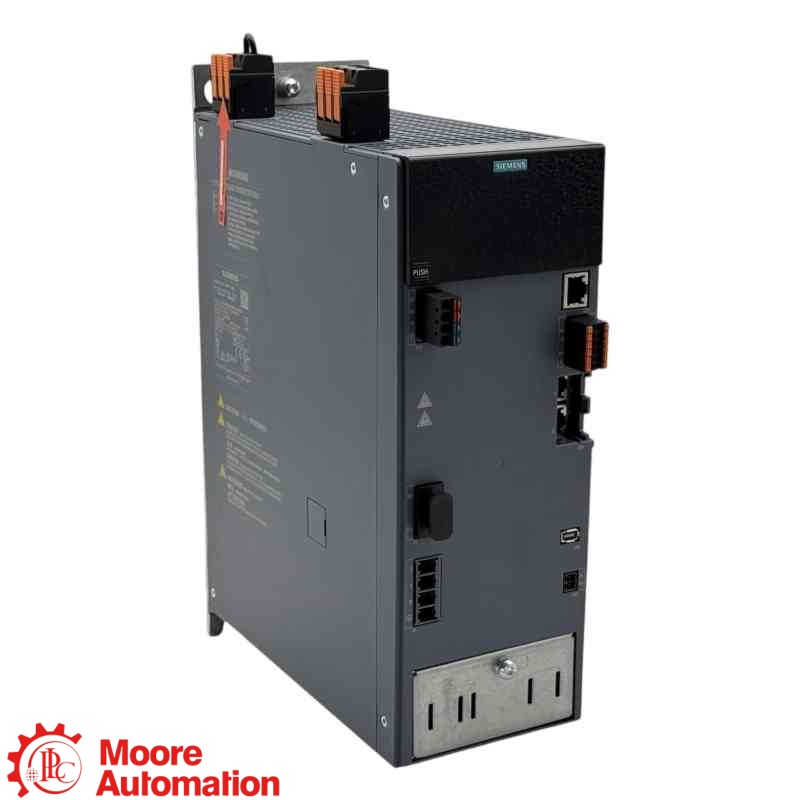

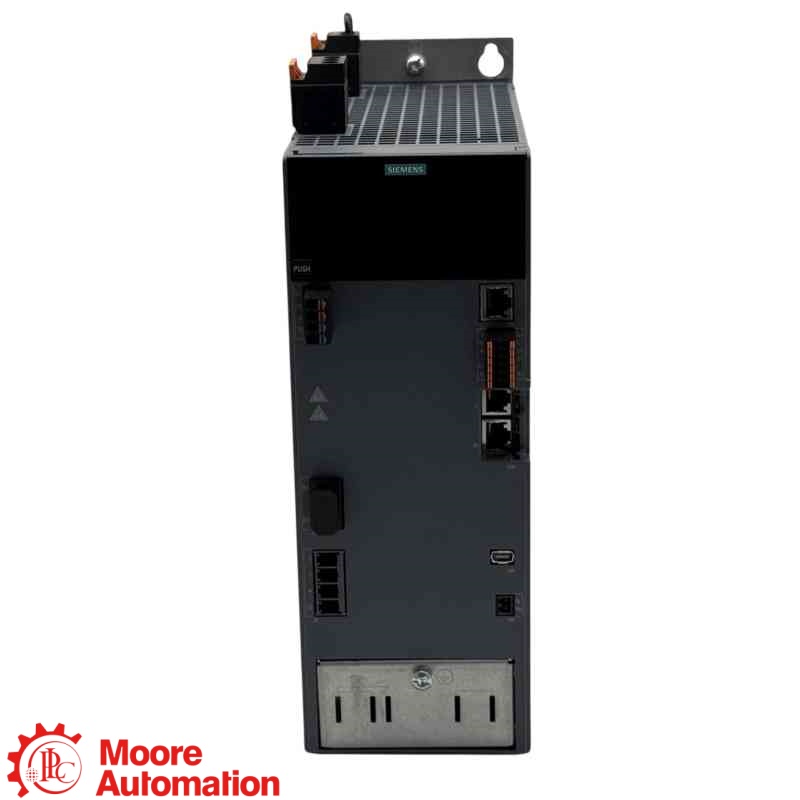

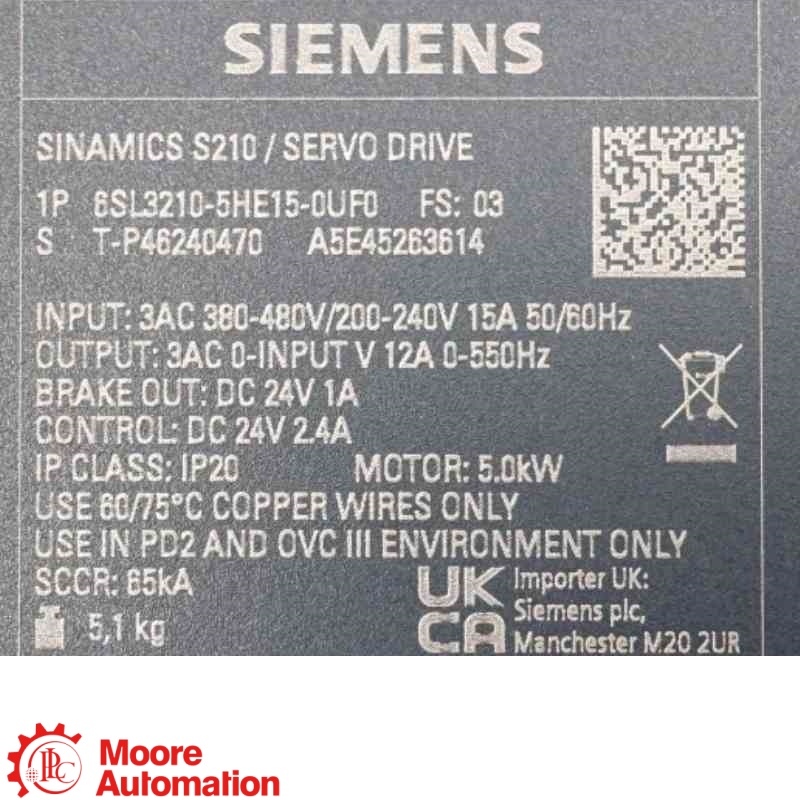

Siemens 6SL3210-5HE15-0UF0 SINAMICS S210 5.0 kW Servo Drive
Siemens 6SL3210-5HE15-0UF0 SINAMICS S210 5.0 kW Servo Drive
Siemens 6SL3210-5HE15-0UF0 SINAMICS S210 5.0 kW Servo Drive

Siemens 6SL3210-5HE15-0UF0 SINAMICS S210 5.0 kW Servo Drive

Siemens SINAMICS S210 · SERVO DRIVE

6SL3210-5HE15-0UF0

The 6SL3210-5HE15-0UF0 is a Siemens SINAMICS S210 servo drive for 3AC 200–480 V input and a 5.0 kW motor. Confirm the exact article number, motor data, supply, wiring and installed project configuration before ordering.

HEIGHT280.0 MM
WIDTH105.0 MM
DEPTH222.8 MM
NET WEIGHT5.00 KG
MANUFACTURERSiemens
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informeer nu
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
SIEMENS ● SINAMICS S210 SERVO DRIVE
Siemens SINAMICS S210

6SL3210-5HE15-0UF0

3AC 200–480 V · 1.0 KW

S210 SERVO DRIVE

PRODUCT ROLE
6SL3210-5HE15-0UF0 is a Siemens SINAMICS S210 servo drive rated for a 5.0 kW motor, with 3AC 200–480 V input and 12.0 A rated output current.
CONFIGURATION NOTE
For 6SL3210-5HE15-0UF0, Siemens identifies this exact article as a SINAMICS S210 servo drive. Confirm the motor, input supply, wiring, safety circuit, firmware and saved project before ordering.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
OFFICIAL SIEMENS REFERENCE

Technical Specifications

Siemens 6SL3210-5HE15-0UF0 ↗
SINAMICS S210 SERVO DRIVE

Engineering data at a glance

Click “+” to expand more specifications.

HEIGHT280.0 MM
WIDTH105.0 MM
DEPTH222.8 MM
NET WEIGHT5.00 KG
Official Siemens technical data and Industry Mall product information.
Official product verificationVerify the complete order number 6SL3210-5HE15-0UF0, the connected motor, 3AC input supply, wiring, safety circuit, firmware and saved project before ordering.
GENERAL INFORMATION −
BrandSiemens
Part number6SL3210-5HE15-0UF0
Product typeSINAMICS S210 servo drive
Product familySINAMICS S210
Product designationServo drive
Rated motor power5.0 kW
DRIVE RATINGS ＋
Input voltage3AC 200–480 V, -10%/+10%
Rated input current15.0 A
Input frequency45–66 Hz
Rated output current12.0 A
Output frequency0–550 Hz
MECHANICAL DATA ＋
Width105.0 mm
Height280.0 mm
Depth222.8 mm
INSTALLATION & LIFECYCLE ＋
Net weight5.00 kg
Frame sizeFSC
Mounting positionVertical wall mounting
Connection typePush-in spring-type terminals
Conductor cross-section0.75–6.00 mm² / 18–10 AWG
Product lifecyclePM400: Announcement of product phase-out
Source: Siemens official Industry Mall technical data for 6SL3210-5HE15-0UF0.
FAQ

Questions Buyers Ask Most

What does 6SL3210-5HE15-0UF0?＋

6SL3210-5HE15-0UF0 is a Siemens SINAMICS S210 servo drive for a 5.0 kW motor, supplied from 3AC 200–480 V.

Which input and output ratings apply to 6SL3210-5HE15-0UF0 ?＋

6SL3210-5HE15-0UF0 accepts 3AC 200–480 V (-10%/+10%) at 15.0 A and 45–66 Hz; its rated output current is 12.0 A with a 0–550 Hz output-frequency range.

What motor rating is specified for 6SL3210-5HE15-0UF0?＋

6SL3210-5HE15-0UF0 is listed for a 5.0 kW motor. The motor, encoder, cable and saved S210 configuration must match the installed system.

What mechanical installation data apply to 6SL3210-5HE15-0UF0 ?＋

6SL3210-5HE15-0UF0 is an FSC unit for vertical wall mounting, measuring 105.0 mm wide, 280.0 mm high and 222.8 mm deep, with a net weight of 5.00 kg.

Which safety input is documented for 6SL3210-5HE15-0UF0?＋

6SL3210-5HE15-0UF0 provides one fail-safe digital input intended only for STO or SS1. Verify the safety wiring and project configuration before commissioning.

Can another S210 drive replace 6SL3210-5HE15-0UF0 ?＋

6SL3210-5HE15-0UF0 directly? No. The article number, motor power and current, input supply, interfaces, firmware, saved project and mechanical fit must all be verified.

What information should accompany an inquiry for 6SL3210-5HE15-0UF0?＋

For 6SL3210-5HE15-0UF0, provide the complete article number, quantity, nameplate, motor data, input supply, wiring, firmware and saved project details.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete article number, motor data, input supply, wiring, firmware and saved project for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
6SL3210-5HE15-0UF0

Official Siemens manufacturer-reference information for the SINAMICS S210 servo drive.

Official datasheet status

The official Siemens technical data identifies 6SL3210-5HE15-0UF0 as a SINAMICS S210 servo drive for 3AC 200–480 V input and a 5.0 kW motor, with 12.0 A rated output current.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements on this product page are based on publicly available official Siemens manufacturer documentation.

SINAMICS S210 DRIVE RELATIONSHIP

How 6SL3210-5HE15-0UF0 Fits a Siemens SINAMICS S210 System

Siemens is the brand; SINAMICS S210 is the servo-drive family; and 6SL3210-5HE15-0UF0 is the 5.0 kW servo drive article for the compatible motor and installed project.

Siemens · BRAND
Siemens SINAMICS S210SERVO DRIVE · FSC
INPUT SUPPLY

3AC 200–480 V

6SL3210-5HE15-0UF0 accepts 3AC 200–480 V (-10%/+10%) at 15.0 A and 45–66 Hz.

OUTPUT DATA

12.0 A · 0–550 HZ

Match the rated output current and frequency range to the connected motor and saved project.

MOTOR POWER

1.0 KW

Siemens lists this exact article for a 5.0 kW motor.

System relationship: verify the complete article number, motor data, supply, wiring, safety circuit, firmware and saved project before installation.
APPLICATION AREAS

Application map for 6SL3210-5HE15-0UF0

Servo Motion SystemsProvides controlled power for a compatible SINAMICS S210 servo motor
Machine AutomationSupports compact machine-axis applications when matched to the motor and project
APPLICATION CENTER 6SL3210-5HE15-0UF0 SINAMICS S210 5.0 kW Servo Drive
STO / SS1Includes one fail-safe digital input intended only for STO or SS1
Configuration CheckConfirm motor, supply, wiring, firmware and saved project before commissioning
