Vibro-Meter TQ902-011 111-902-000-011 A1-B1-C42-D2-E10000-F2-G9800-H10 Proximity Sensor

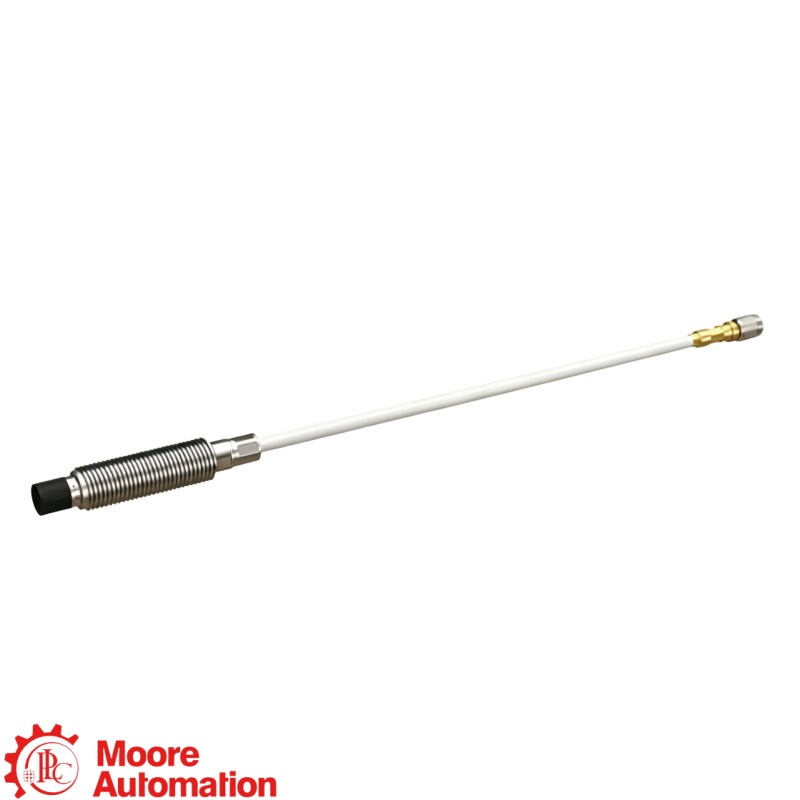

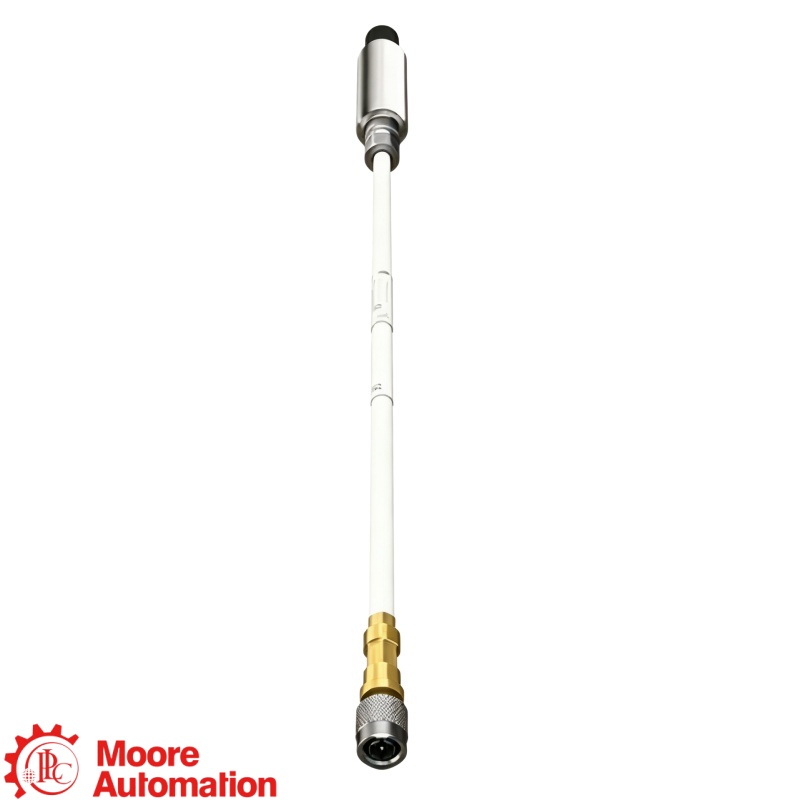

TQ902-011 111-902-000-011 A1-B1-C42-D2-E10000-F2-G9800-H10 is a Vibro-Meter TQ902 eddy-current proximity sensor with a 42 mm body and 10 m integral cable. It measures non-contact relative displacement and vibration on conductive targets when used with a compatible EA902 extension cable and IQS900 conditioner.

TQ902-011 111-902-000-011 A1-B1-C42-D2-E10000-F2-G9800-H10 has a B1 M10 × 1 thread, C42 42 mm body and D2 2 mm unthreaded section. These exact manufacturer-defined dimensions identify its mounting geometry and distinguish it from other TQ902 configurations.

TQ902-011 111-902-000-011 A1-B1-C42-D2-E10000-F2-G9800-H10 uses E10000, denoting a 10 m integral coaxial cable. The complete sensor, cable and IQS900 conditioner must be configured for the H10 10 m total measurement-system length defined in the ordering table.

TQ902-011 111-902-000-011 A1-B1-C42-D2-E10000-F2-G9800-H10 uses F2, meaning flexible hose with fep sheath, no connector, and G9800, meaning 9.8 m flexible hose length. Both option fields are defined by Parker Meggitt for this exact TQ902 ordering base.

TQ902-011 111-902-000-011 A1-B1-C42-D2-E10000-F2-G9800-H10 specifies H10, a 10 m total measurement-chain length. Its E10000 integral cable is also 10 m; any EA902 extension cable and IQS900 conditioner must match the resulting system configuration.

TQ902-011 111-902-000-011 A1-B1-C42-D2-E10000-F2-G9800-H10 uses A1, the standard-environment option rather than the A5 Ex option. Hazardous-area use requires appropriately certified sensor, cable and conditioner components; this exact A1 configuration should not be described as Ex-rated.

TQ902-011 111-902-000-011 A1-B1-C42-D2-E10000-F2-G9800-H10 is the sensing element of the TQ902 / EA902 / IQS900 proximity chain. A compatible EA902 extension cable and IQS900 conditioner complete the system for non-contact measurement of conductive targets, subject to the specified cable and total-chain lengths.
