 /Yokogawa ADV859-P00 S1 ST2-Compatible Digital I/O Module

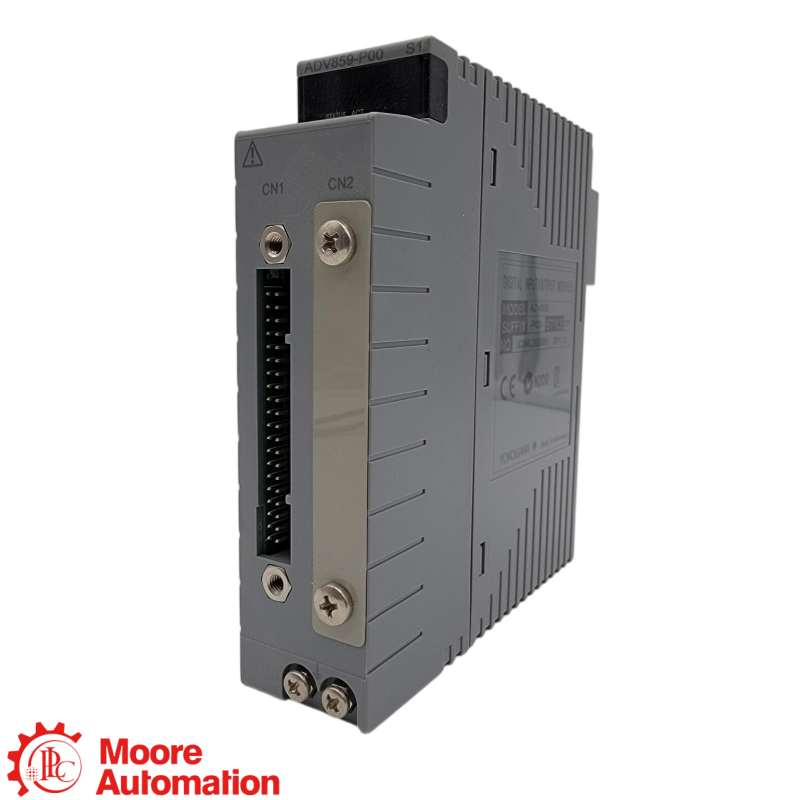

Yokogawa ADV859-P00 S1 ST2-Compatible Digital I/O Module
Yokogawa ADV859-P00 S1 ST2-Compatible Digital I/O Module
Yokogawa ADV859-P00 S1 ST2-Compatible Digital I/O Module

Yokogawa ADV859-P00 S1 ST2-Compatible Digital I/O Module

PRODUCT REFERENCE VERIFICATION

ADV859-P00 S1

The ADV859-P00 S1 is a Yokogawa ST2-compatible digital I/O module with 16 input channels and 16 output channels. It provides isolated channels and uses a dedicated KS2 cable.

CATALOGADV859-P00 S1
IDENTITYExact label
SYSTEMCENTUM-ST compatible I/O
STATUSVerification required
BRANDYokogawa
PRODUCT TYPEST2-Compatible Digital I/O Module
CONDITION / WARRANTYOriginal New · One-Year Warranty
VERIFICATIONPhotos and video after inquiry
REQUEST A QUOTE

  • Merk :

    Yokogawa

  • Onderdeel nummer :

    ADV859-P00 S1

  • Beschrijving :

    ST2-Compatible Digital I/O Module
Informeer nu
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
PRODUCT INFORMATION● OFFICIAL YOKOGAWA REFERENCE
PRODUCT REFERENCE VERIFICATION

ADV859-P00 S1

CONFIGURATION VERIFICATION

EXACT MODEL · ST2 COMPATIBLE · 16 INPUTS + 16 OUTPUTS · KS2 CABLE

PRODUCT ROLE
ADV859-P00 S1 is a Yokogawa digital I/O module for compatible ST2 applications. It receives contact or voltage status inputs and provides transistor-contact outputs with isolated channels.
INSTALLATION CHECK
Confirm the complete ADV859-P00 S1 nameplate, ST2 compatibility, KS2 cable, 5 V DC module supply, field signal ratings and channel assignments before installation.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.comWHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the ADV859-P00 S1 Order Number Is Structured

ADV859
Model codeST2-compatible digital I/O module with 16 inputs and 16 outputs
suffix options
Suffix and styleP = pulse-width/time-proportional output; 00 = required/basic suffix; S1 = stated style identifier
OFFICIAL YOKOGAWA REFERENCE

Technical Specifications

VERIFICATION REQUIRED
ADV859-P00 S1

Verified ADV859-P00 S1 Data at a Glance

Values below are documented in Yokogawa General Specification GS 33J60F70-01EN for ADV859 and suffix -P00.

I/O channels16 inputs · 16 outputs
IsolationIsolated channels
Response8 ms input · ≤16 ms output
ConnectionDedicated KS2 cable
Verified configuration

16 inputs · 16 outputs · Isolated channels · 8 ms input · ≤16 ms output · Dedicated KS2 cable

General Information −
BrandYokogawa
ModelADV859-P00 S1
Product categoryDigital I/O Module
Compatible cardST2 compatible
Electrical and Timing Data ＋
Output contact rating30 V DC · 100 mA (inductive or resistive load)
Current consumption450 mA at 5 V DC
Pulse-width range8 ms to 7200 s · 8 ms resolution plus up to 1 ms ON/OFF delay
Physical and Ordering Data ＋
Weight and connectionApprox. 0.30 kg · dedicated KS2 cable
Ordering basisADV859 with -P00 basic suffix; match the S1 style marking on the nameplate
Source: Yokogawa General Specification GS 33J60F70-01EN, Digital I/O Modules.
FAQ

ADV859-P00 S1 Specifications, Connection and Ordering FAQ

What type of product is ADV859-P00 S1?＋

ADV859-P00 S1 is a Yokogawa digital I/O module for compatible ST2 applications, with 16 input channels and 16 output channels.

What does the P00 suffix in ADV859-P00 S1 mean?＋

For ADV859-P00 S1, the official model table defines P as pulse-width and time-proportional output functionality, the first 0 as the required fixed code, and the second 0 as the basic type.

How are the ADV859-P00 S1 channels isolated?＋

ADV859-P00 S1 provides 16 input channels and 16 output channels with isolated channels.

What response times are specified for ADV859-P00 S1?＋

ADV859-P00 S1 has an 8 ms status-input response and a status-output response of 16 ms or less.

What cable is used with ADV859-P00 S1?＋

ADV859-P00 S1 uses a dedicated KS2 cable and is specified as ST2 compatible.

What output rating applies to ADV859-P00 S1?＋

ADV859-P00 S1 has transistor-contact outputs rated 30 V DC at 100 mA for inductive or resistive loads; a spark-killer diode is required when driving a DC relay.

What should be checked before ordering ADV859-P00 S1?＋

Before ordering ADV859-P00 S1, match the complete model, -P00 suffix, S1 style marking, compatible-card position, dedicated cable, channel functions, field load and installed-system record.

CONTACT PRODUCT SPECIALIST

Check ADV859-P00 S1 configuration with Frida

Provide the complete ADV859-P00 S1 nameplate, installed-system details, wiring or cable information, quantity and destination. Share photographs for configuration verification.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
ADV859-P00 S1

Official manufacturer-reference information for the Yokogawa ADV859-P00 S1 ST2-Compatible Digital I/O Module.

Official datasheet status

Yokogawa General Specification GS 33J60F70-01EN documents ADV859, the -P00 basic suffix, 16-input/16-output configuration, ST2 compatibility and dedicated KS2 connection. Match S1 to the style marking on the nameplate.

VERIFICATION REQUIRED

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements on this page are limited to Yokogawa General Specification GS 33J60F70-01EN for ADV859 and the -P00 suffix.

ST2 COMPATIBLE · DIGITAL I/O

How ADV859-P00 S1 Fits a Yokogawa ST2-Compatible System

Yokogawa is the brand; ADV859-P00 S1 is the 16-input/16-output digital I/O module for compatible ST2 applications; -P00 selects pulse-width/time-proportional output functionality in the basic type.

Yokogawa · BRAND
Yokogawa Digital I/O ModuleST2 · 16 INPUTS · 16 OUTPUTS
SYSTEM ROLE

ADV859 · ST2 I/O

Receives contact or voltage status inputs and provides transistor-contact status, pulse-width or time-proportional outputs.

CHANNEL FIT

16 INPUTS · 16 OUTPUTS

Channels are isolated; confirm channel assignment, cable routing and field wiring against the installed ST2 arrangement.

CONNECTION DATA

KS2 · 5 V DC

Uses a dedicated KS2 cable and draws 450 mA from the 5 V DC system supply.

System relationship: verify the complete ADV859-P00 S1 label, ST2-compatible position, KS2 cable, channel assignment, field wiring, 5 V DC module supply and output loads before installation or replacement.
VERIFICATION EVIDENCE

Evidence needed to verify ADV859-P00 S1 correctly

Product Identity

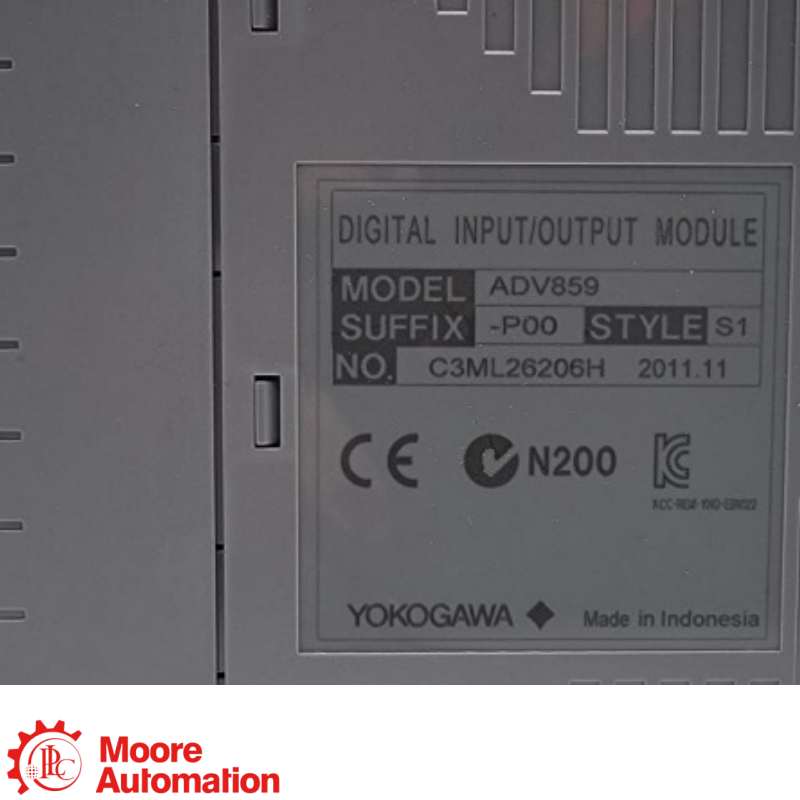

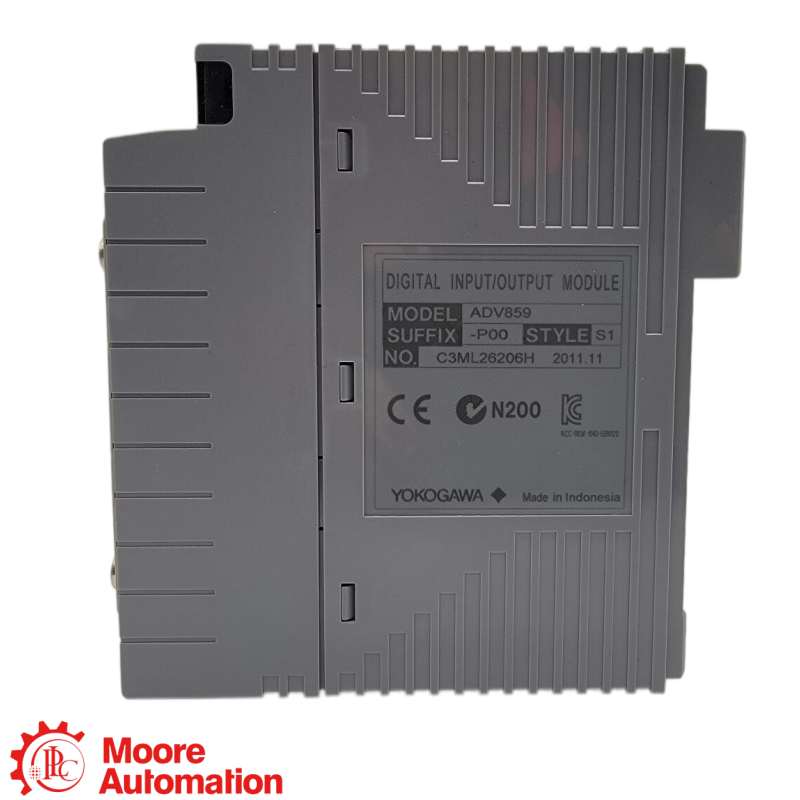

Match ADV859-P00 S1 to the complete Yokogawa nameplate, -P00 suffix, S1 style marking and installed hardware record.

Installation Context

Document the ST2-compatible card position, dedicated KS2 cable, 16-input/16-output channel map, channel isolation and field wiring.

PRODUCT REFERENCEADV859-P00 S1Complete ADV859-P00 S1 product reference
Configuration Evidence

Use the complete ADV859-P00 S1 label, cable identity, channel assignment and system record to verify configuration before ordering.

Replacement Check

Do not substitute another ADV module solely by appearance; compatible-card type, channel count, isolation method, cable and suffix must match.
